Compact profile
A curved metal intake panel.
Air Curtains / Q Series
Q Series Air Curtain
A compact profile for shop entrances.
A curved metal housing and multiple lengths designed around commercial entrances and airflow management.
Compact profileMultiple lengthsMotor and impeller
PRODUCT FEATURES
Details designed around use.
Multiple lengths
The catalog lists lengths from 600 to 2000 mm.
Motor and impeller
The motor and impeller create airflow across the entrance.
DESIGN & OPERATION
From operating principles to everyday use.
Compact entrance airflow management
The small Q Series uses a cross-flow impeller to distribute air across the doorway. Select by door width, mounting height and noise requirements.
Adjustable direction and two-speed control
Air guides adjust direction. The documentation lists button and remote versions with high and low speeds. Confirm controls and installation conditions before use.
Coated metal panel
The metal housing has a coated finish. Keep inlet and outlet paths clear and disconnect power before maintenance.
INSIDE THE PRODUCT
Explore the construction and functions.
Enlarge image ⊕

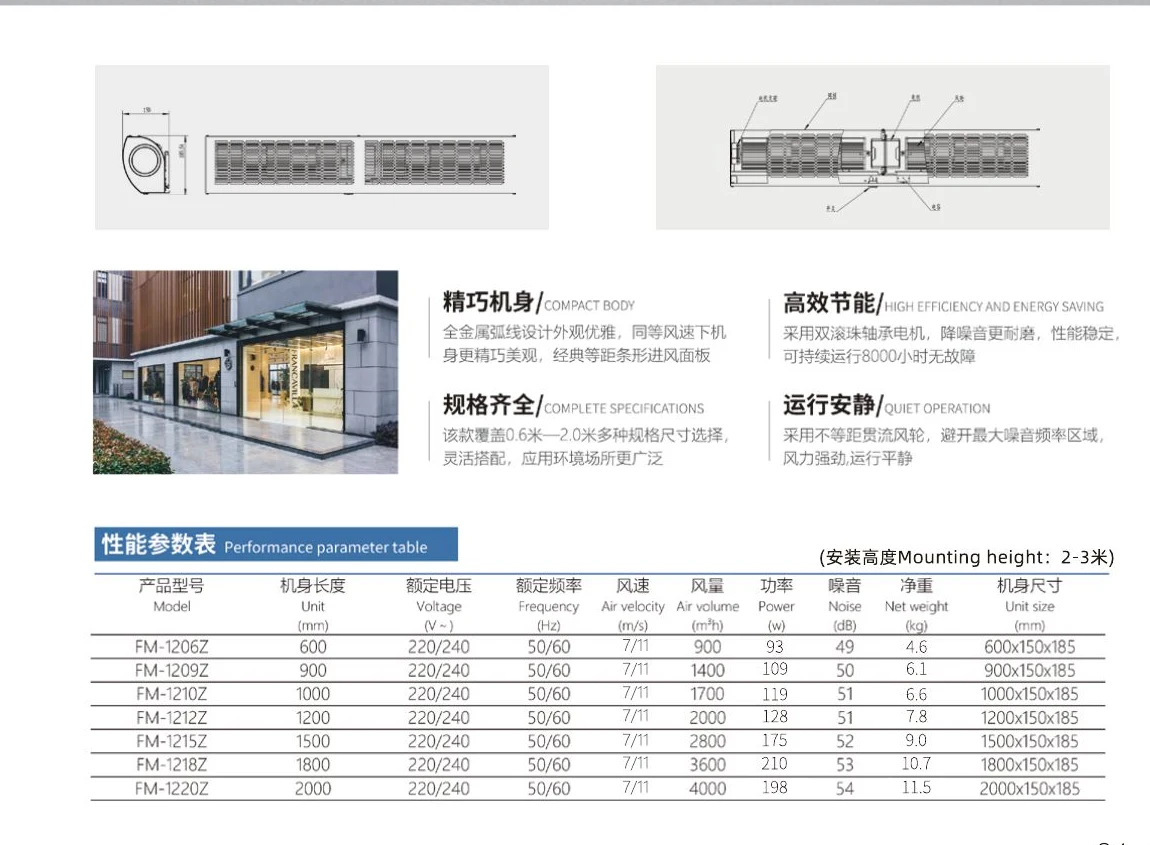

Enlarge image ⊕SPECIFICATIONS
Specifications at a glance.
| Representative model | FM-1206Z |
|---|---|
| Unit length | 600 mm |
| Airflow | 900 m³/h |
| Power | 93 W |
| Catalog installation height | 2–3 m |
Specifications follow the corresponding product documents. Do not combine figures from different models. Confirm operating conditions and the supplied configuration.
Enlarge image ⊕APPLICATION & SELECTION
Open doors. A boundary for comfort.
Choose air curtains for shop entrances, taller doorways, cold rooms and recessed ceiling installations.
Before selecting a product
Doorway width, installation height, indoor and outdoor airflow, power supply and controls.
Application illustration, not a record of a completed project.
Discuss your projectPRODUCT QUESTIONS
Questions about this product
What are the key features of the Q Series Air Curtain?
Compact profile：A curved metal intake panel.；Multiple lengths：The catalog lists lengths from 600 to 2000 mm.；Motor and impeller：The motor and impeller create airflow across the entrance.
What should I check before selecting the Q Series Air Curtain?
Please confirm: Doorway width, installation height, indoor and outdoor airflow, power supply and controls.
