Fresh Air Systems / DUT

Dual-Flow Filtered Fresh Air Ventilator

Air in. Air out. Naturally.

Balanced supply and exhaust paths, filtration and a slim housing bring fresh air ventilation into ceiling spaces.

Dual-flow ventilationDouble-inlet fanSlim housing

Discuss product selection View specifications

PRODUCT FEATURES

Details designed around use.

Dual-flow ventilation

Supply and exhaust paths work together to circulate air.

Double-inlet fan

Uses a double-inlet centrifugal fan.

Slim housing

Different housing sizes suit different installation conditions.

DESIGN & OPERATION

From operating principles to everyday use.

Two coordinated air paths

Indoor air exits through exhaust grilles, ducts and fans. Outdoor air enters through supply fans, ducts and grilles. Check resistance and airflow separately for each path.

Dual-flow versus energy recovery

The documentation distinguishes dual-flow models from energy recovery models: dual-flow units provide supply and exhaust without a total heat exchange core. Choose an energy recovery series when that function is required.

Consider filters and installation together

The documentation describes primary and activated carbon filters; verify the configuration for each model. Confirm filters, duct connections and ceiling service access before installation.

INSIDE THE PRODUCT

Explore the construction and functions.

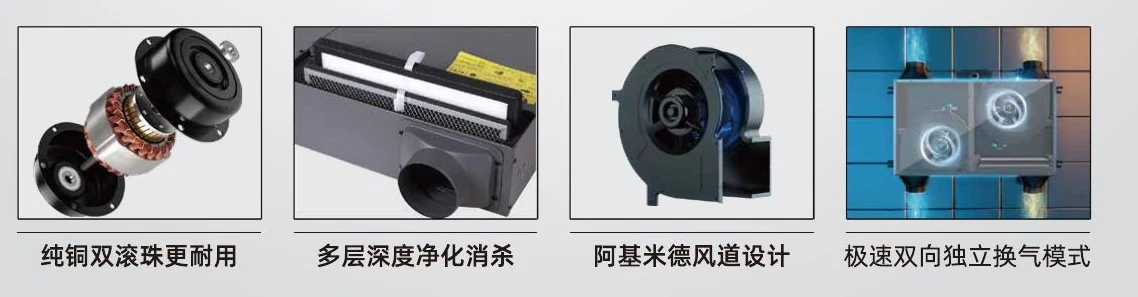

Dual-Flow Filtered Fresh Air Ventilator: components and functions — Components and construction

SPECIFICATIONS

Specifications at a glance.

Representative model specifications
Model	DUT10-34
Airflow (high / low)	230 / 180 m³/h
Static pressure (high / low)	210 / 110 Pa
Power (high / low)	80 / 50 W

Specifications follow the corresponding product documents. Do not combine figures from different models. Confirm operating conditions and the supplied configuration.

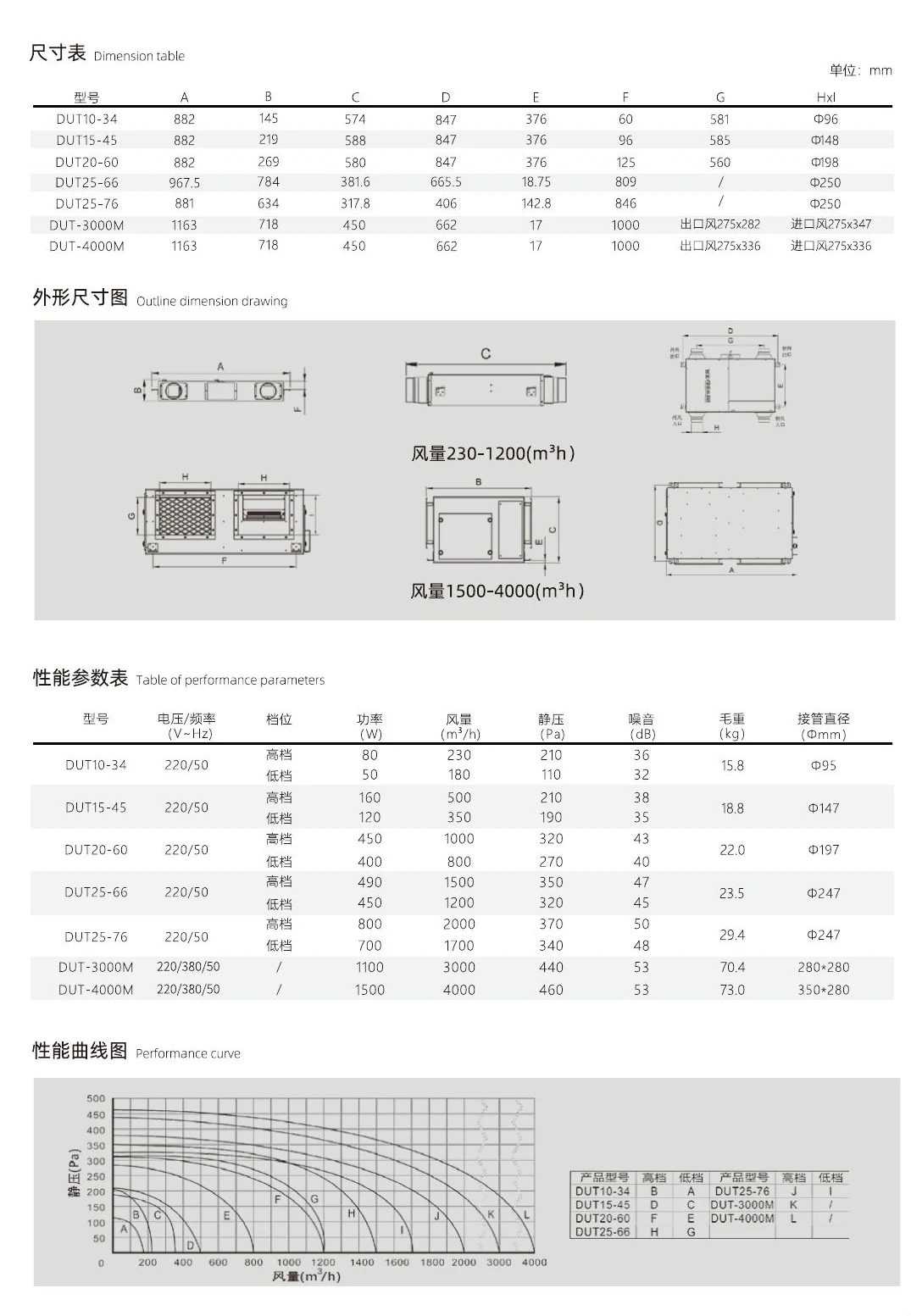

Dual-Flow Filtered Fresh Air Ventilator: dimensions, construction and performance charts — Dimensions and specifications - click to enlarge

Fresh Air Systems — application illustration

APPLICATION & SELECTION

Bring fresh air into everyday life.

From single-flow supply to dual-flow ventilation, filtration and energy recovery: choose air renewal to suit your space.

Before selecting a product

Occupancy, floor area, ceiling height, duct routing, filtration needs and service access.

Application illustration, not a record of a completed project.

Discuss your project

PRODUCT QUESTIONS

Questions about this product

What are the key features of the Dual-Flow Filtered Fresh Air Ventilator?

Dual-flow ventilation：Supply and exhaust paths work together to circulate air.；Double-inlet fan：Uses a double-inlet centrifugal fan.；Slim housing：Different housing sizes suit different installation conditions.

What should I check before selecting the Dual-Flow Filtered Fresh Air Ventilator?

Please confirm: Occupancy, floor area, ceiling height, duct routing, filtration needs and service access.
